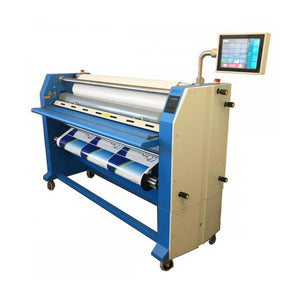

GFP 663TH 63" Top Heat Wide Format Laminator
Description
The 663-TH is a flagship production top heat laminator engineered for wide-format finishing professionals who demand maximum accuracy, automation, and repeatable high-quality output. Designed around advanced Smart Finishing Technology, this system combines intelligent controls, production-grade hardware, and labor-saving features to optimize efficiency in high-volume environments.
Smart Finishing Technology
At the core of the 663-TH is a digital microcontroller system with a large touchscreen user interface. The intuitive display provides real-time machine status, operational controls, and setup access, allowing operators to precisely manage speed, temperature, roller gap, and pressure with exceptional consistency and repeatability.
Precision Electronic Control
An electric servo motor with positioning encoder delivers electronic roller gap and pressure control, ensuring accurate and repeatable settings for every job. Digital roller pressure readouts reduce setup time, minimize material waste, and help maintain flat, professional-quality output across a wide range of media.
High-Productivity Roll-to-Roll Workflow

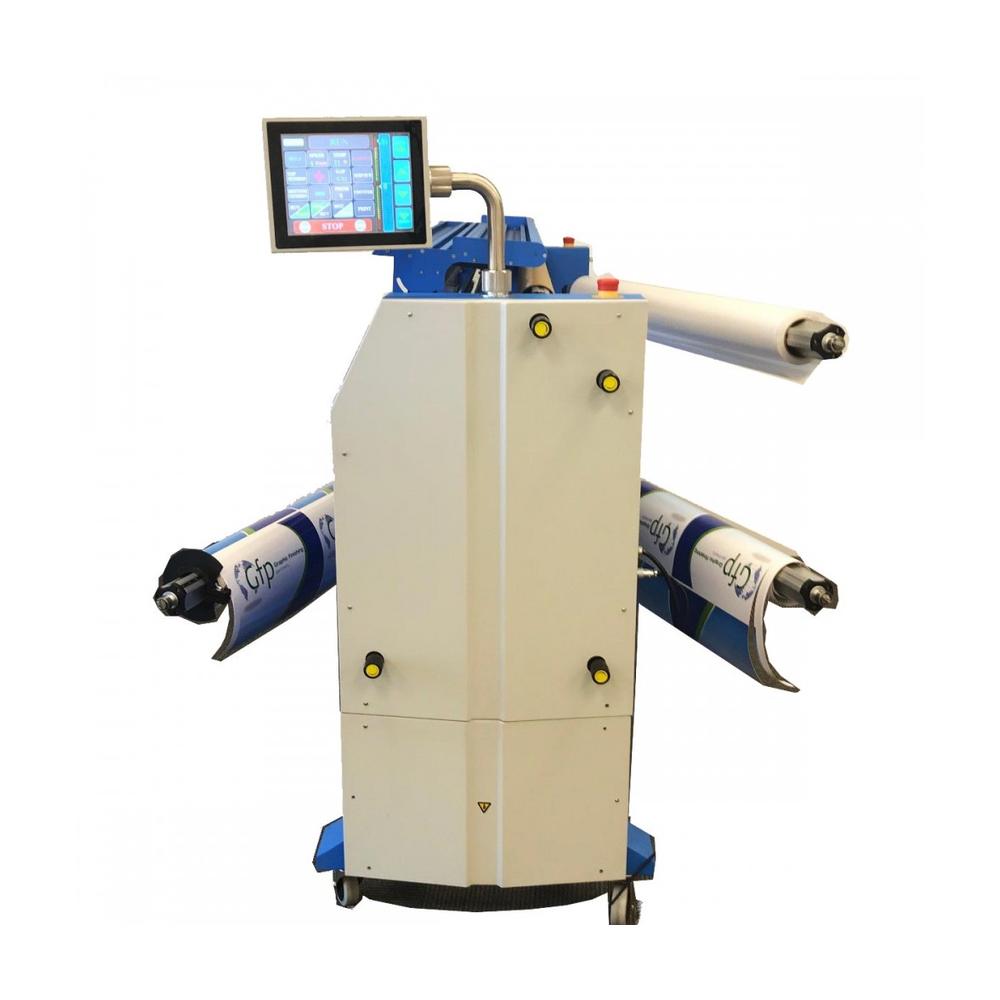

The integrated motorized rear rewind supports long, uninterrupted roll-to-roll production, while inline rotary side slitters trim output during lamination to eliminate secondary finishing steps. Swing-out unwind and rewind shafts significantly reduce loading time and accelerate job changeovers.
Advanced Heat Assist System
Top roller heat assist softens adhesive layers to improve bonding and reduce silvering, allowing faster processing speeds without compromising quality. The metal alloy heating system provides stable, consistent heat for demanding production schedules.
Operator-Focused Design
Built-in operator alerts, onboard visual help tutorials, and service-level adjustment screens improve usability and training efficiency. A roll label printer tracks film usage and remaining footage, helping shops manage inventory and reduce material waste with greater accuracy.
Typical Applications
- Overlamination
- Graphic and photo mounting
- Board pre-coating
- Signs and banners
- POP and trade show displays
- Floor, window, and vehicle graphics
Key Highlights
- 63" production laminating width
- Touchscreen digital control interface
- Electronic servo-driven roller gap and pressure control
- Integrated rear rewind for continuous roll-to-roll operation
- Inline rotary side slitters
- Swing-out shafts for fast media loading
- Top heat assist with metal alloy heater
- Film usage tracking and roll label printing
Technical Specifications
| Description | 663TH |
|---|---|
| Laminating Width | 63" |
| Roller Diameter | 5" |
| Roller Gap (Max) | 1" |
| Main Rollers | Silicone |
| Supply Roll Diameter (Max) | 8" OD (top); 16" OD (bottom) |
| Supply Shafts | 2 Swing-Out |
| Swing-Out Shaft Maximum Weight | 115 lbs |
| Rewind Shafts | 2 (1 Swing-Out) |
| Rear Rewind | Included |
| Rear Inline Slitters | Rotary Design |
| Maximum Temperature | 140°F |
| Heat Method | Metal Alloy Heater |
| Film Core Size | 3" |
| Laminating Speed | 0–20 ft/min |
| Pressure Adjustment | Electric Servo Motor |
| Output Height | 38" |
| Foot Pedal | Included |
| Power Supply | 120V 60Hz |
| Power Consumption | 1440W / 12A |
| Net Weight | 675 lbs. |
| Dimensions (W × D × H) | 83" × 30.7" × 63" |
| Shipping Weight | 986 lbs. |
| Shipping Dimensions (W × D × H) | 90" × 35" × 59" |
